20 Piece (MOQ)
| Business Type | Manufacturer, Supplier |
| Country of Origin | India |
| Type | Push Cocks |
| Material | Cast Iron |
| Click to view more | |
Product Details
Color
Green
Feature
Leak Proof
Finishing
Polished
Product Code
H-27/PC
Features:
- Spring feed,push type,self closing.
- Brass spindle & nut
- Synthetic rubber washer
- Powder coated long life paint
- Available in 15mm & 20mm
Applications:
Drinking water,public utilities,religious places and construction industry.

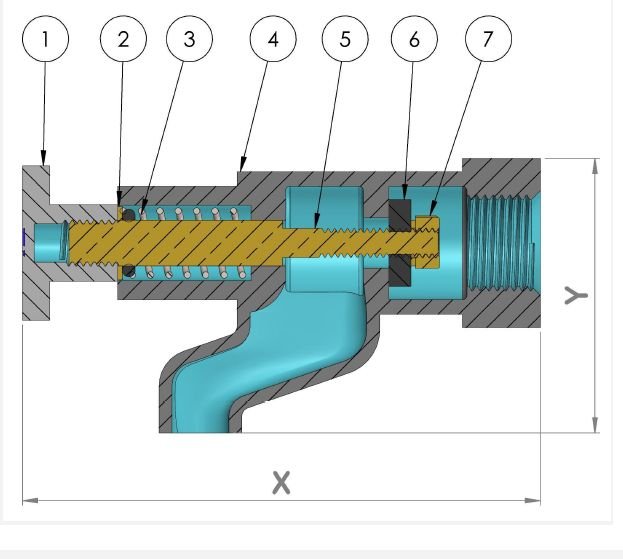

Bill of Material
| S.No | COMPONENT MATERIAL |
| 1 | body Cast iron (IS:210) |
| 2 | Spindle & nut brass (IS:3488) |
| 3 | washer Synthetic rubber (BS-2751) |
| 4 | knob Cast iron (IS:210) |
Suitability
| PRESSURE TESTING | |||
| TEST PRESSURE | MAX C.W.P | ||
| Body | seat | Body | seat |
| 300 PSI | 20 kg/cm² | 200 PSI | 14 kg/cm² |
| # Hydraulically | |||
| Suitability-water and oil | |||
Chart
