Cast Iron Valves & Cocks

Features:

• 1/2” (15 mm) to 2” (50 mm) sizes
• Vertical Type Check Valve
• Threads as per BSPT
• Brass seat
• Nitrile rubber washer
• Powder coated long life paint
• Available in Cast Iron

Applications:
Plumbing (Hot & Cold Water), Construction Industry, Water & Effluent Treatment Plants, Solvent Plants, Distribution of Oils and for numerous other applications

Features:

• Powder coated long lasting paint
• Synthetic rubber used for durability

Applications:
For use on water suction hose to prevent from losing its prime.

Features:
1/2” (15 mm) to 2”(50mm) in screwed type 2 pc design
Threads as per BSPT
Stainless Steel mirror finish balls
Blow-out proof stem
P.T.F.E. seats and seals
Full Bore Design
Quick open\close by quarter turn operation.

Applications:
Air and water

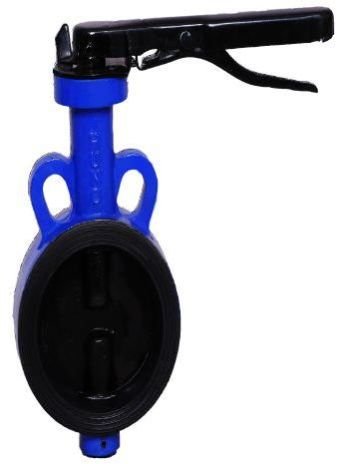

A butterfly valve is a quarter-turn rotational motion valve used to start, stop, and regulate fluid flow. It operates via a rotating disc mounted on a central shaft, which turns 90 degrees to fully open or close the passage.

Core Components

• Disc: The closing element positioned in the middle of the pipe. Rotating it parallel to the flow allows fluid through, while rotating it perpendicular seals the valve.

• Stem (Shaft): Connects the internal disc to the external actuator or hand lever.

• Body: Fits between pipe flanges. Common body styles include Wafer (sandwiched between pipe flanges) and Lug (protruding threaded bolts for direct connection).

• Seat: An elastomeric or metallic lining inside the body that ensures a tight seal against the disc when closed.

Key Offsets & Types

Features:

• Gravity operated self closiy type
• Threads as per BSPT
• Brass spindle & nut
• Synthetic rubber washer
• Powder coated long life paint

Applications:

• General industry, railway industry, construction industry, religious places, public places and
• other numerious applications

Features:

• 1/2” (15 mm) to 4” (100 mm) in screwed type 2 pc design
• Threads as per BSPT
• Stainless Steel mirror finish balls
• Blow-out proof stem
• P.T.F.E. seats and seals
• Gland Packing may be replaced under pressure
• Available in Cast Iron and Ductile Iron
• Full Bore Design
• Quick open\close by quarter turn operation.

Applications

• Plumbing (Hot & Cold Water), Mining Industry, Construction Industry, Water & Effluent Treatment
• Plants, Fire Fighting, Gas Suppliers, Solvent Plants, Distribution of Oils, Hydraulic Machines and for
• numerous other applications.

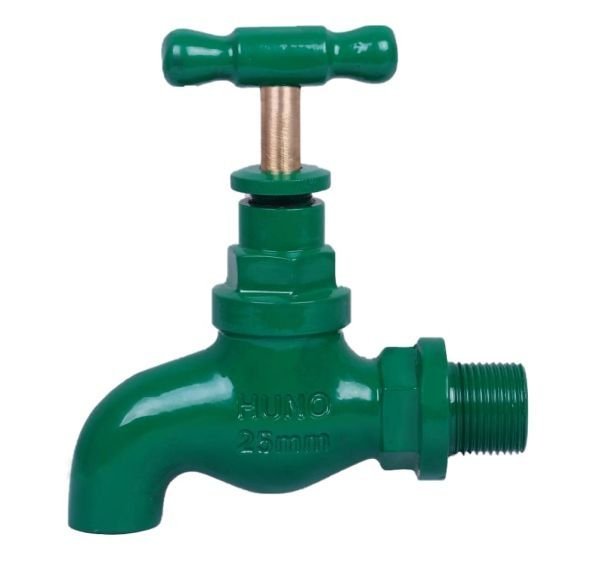

Features:

•     Screw down type cast iron bib tap
•     Forged brass spindle and brass jumper valve
•     15mm to 25mm
•     Powder coated long life paint

Applications:
General Industry, Plumbing (Hot & Cold Water), Construction Industry, Religious Places, Public Places and various numerous applications

Features:

• Powder coated long lasting paint
• Synthetic rubber used for durability

Applications:
For use on water suction hose to prevent from losing its prime.

Features:

• 1/2” (15 mm) to 2” (50 mm) sizes
• Vertical Type Check Valve
• Threads as per BSPT
• Brass seat
• Nitrile rubber washer
• Powder coated long life paint
• Available in Cast Iron
• Body : Cast Iron

Applications:

• Plumbing (Hot & Cold Water), Construction Industry, Water & Effluent Treatment Plants, Solvent
• Plants, Distribution of Oils and for numerous other applications

Features:

• 1/2” (15 mm) and 3/4” (20 mm) sizes
• Threads as per BSPT (females end)
• Brass seat and spindle
• Synthetic Rubber Washer
• Powder coated long life paint
• Gravity operated self-closing type

Applications:
General industry, railway industry, construction industry, religious places, public places and other numerious applications.

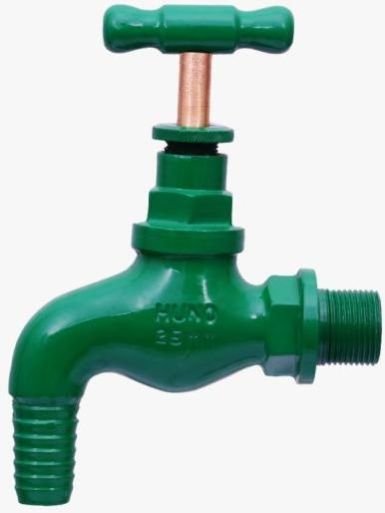

• Heavy-Duty Construction: Manufactured from premium cast iron to withstand tough usage and high-pressure water delivery.

• Integrated Nozzle Design: Features a ribbed end nozzle for secure hose pipe attachment, minimizing slippage during operation.

• Corrosion & Leak Resistant: Precision-machined threads and internal seating ensure smooth handle operation and a leak-proof seal.

• Versatile Application: Ideal for factories, agricultural fields, construction sites, outdoor gardens, and commercial plumbing setups.

• Low Maintenance: Highly durable build reduces replacement frequency and overall maintenance costs.

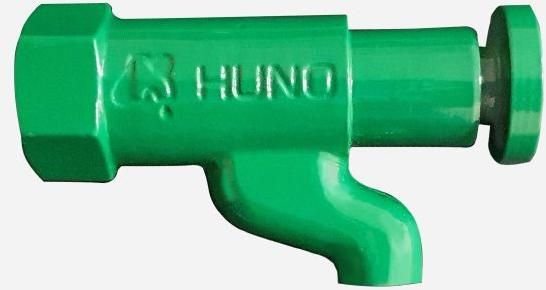

Features:

• Spring feed,push type,self closing.
• Brass spindle & nut
• Synthetic rubber washer
• Powder coated long life paint
• Available in 15mm & 20mm

Applications:
Drinking water,public utilities,religious places and construction industry.

Material: Durable cast iron body with corrosion-resistant internal components.

Operation: Push-button, self-closing mechanism.

Water Saving: Automatically shuts off after release or after a preset delay (depending on the model).

Applications: Public toilets, commercial buildings, industrial facilities, and outdoor water points.

Advantages:

Conserves water by preventing taps from being left running.

Robust construction suitable for heavy-duty use.

Low maintenance and long service life.

Hygienic operation with minimal contact time.

A cast iron push tap is valued for its strength, durability, and efficient water-saving performance in environments with frequent use.

A Cast Iron Railway Ball Valve is a quarter-turn shut-off valve used in railway piping systems to control the flow of liquids or gases. It is designed to provide reliable sealing, durability, and easy operation in demanding railway environments.

Description

A cast iron railway ball valve consists of a cast iron body, a precision-machined ball with a central bore, valve seats, stem, and operating handle or actuator. Rotating the handle 90 aligns or blocks the bore with the pipeline, allowing quick opening or closing of the flow.

Owing to our expertise in this domain, we are engaged in offering an excellent quality array of Stop Valve. This valve is used to prevent flow of water in various industrial sectors. The offered valve is manufactured using superior quality raw material and ultra-modern technology in compliance with the international quality standards and is available in 15mm, 20mm, 25mm sizes. We offer this Stop Valve at the most affordable price in various specifications as per the specific needs of clients.

Features:

cast iron bib tap with brass working parts and coated powder paint available in sizes 15mm, 20mm and 25mm

Features:

• Stainless steel strainer\mesh
• Screwed female threads as per BSPT
• 1mm perforated mesh
• Custom size Perforation on demand
• 15mm to 50mm
• Self operation
• Body : Cast Iron

Features:

• Cast iron ball valve three piece design as per IS 9890-1981
• 1/2” (15 mm) to 4” (100 mm) in screwed type 2 pc design
• Full Bore Design
• Stainless Steel mirror finish balls
• Blow-out proof stem
• P.T.F.E. seats and seals
• Gland Packing may be replaced under pressure
• Available in Cast Iron and Ductile Iron

Applications:

• Plumbing (Hot & Cold Water), Mining Industry, Construction Industry, Water & Effluent Treatment
• Plants, Fire Fighting, Gas Suppliers, Solvent Plants, Distribution of Oils, Hydraulic Machines and for
• numerous other applications

Features:

• Fitted with Brass Seat
• Superior Rubber Washer
• Painted Internally and externally for long durability
• Tested 500 lbs

Features:

• Compact design,easy installation
• Permits water flow in one direction only

Applications:
For use on water suction hose to prevent from losing its prime.

Features:

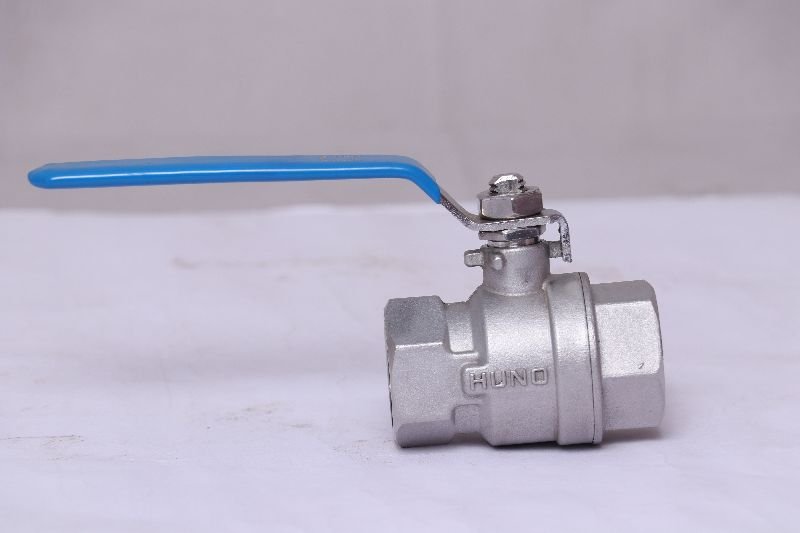

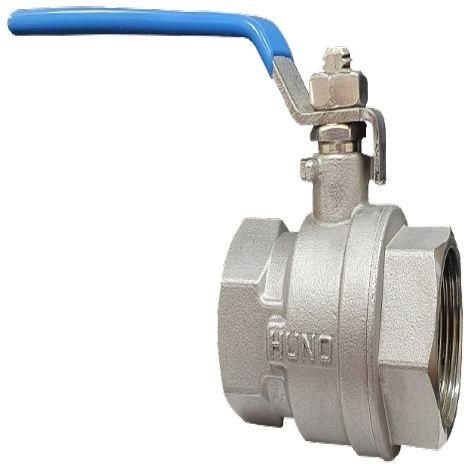

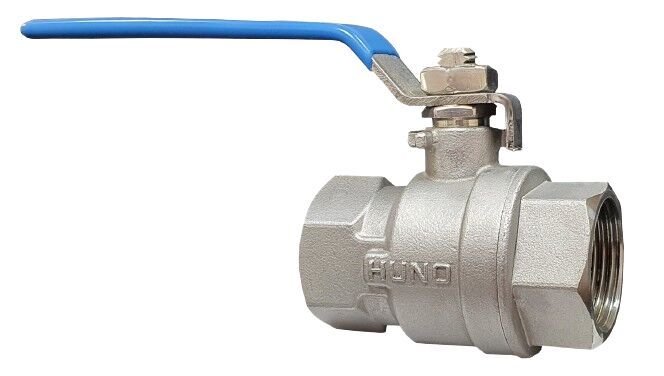

• 1/2” (15 mm) to 2”(50mm) in screwed type 2 pc design
• Threads as per BSPT
• Stainless Steel mirror finish balls
• Blow-out proof stem
• P.T.F.E. seats and seals
• Full Bore Design
• Quick open\close by quarter turn operation.
• Investment cast components

TEST PRESSURE:

• Hydraulic body test- 62 kg/cm²
• Pneumatic seat test-4-7 kg/cm²
