20 Piece (MOQ)
| Business Type | Manufacturer, Supplier |
| Country of Origin | India |

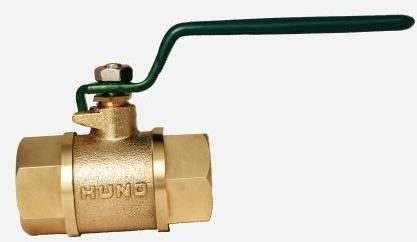

| Type | Brass Ball Valve |
| Brand Name | Huno |
| Click to view more | |
Product Details
Material
Brass
Usage
Gas Fitting
Finishing
Polished
Driving Mode
Manual
Product Code
H-13/BB/V
Features:
1/2” (15 mm) to 2”(50mm) in screwed type 2 pc design
Threads as per BSPT
Stainless Steel mirror finish balls
Blow-out proof stem
P.T.F.E. seats and seals
Full Bore Design
Quick open\close by quarter turn operation.
Applications:
Air and water
Bill of Material
| S.NO. | COMPONENT | MATERIAL |
| 1 | Body | Brass (B.S2872\CZ114) |
| 2 | Connector | Brass (B.S2872\CZ114) |
| 3 | Valve Seat | P.T.F.E. (Teflon) (BS.936) |
| 4 | Ball | Stainless Steel (AISI-202\304\316) |
| 5 | Spindle/Stem | Stainless Steel (AISI-202\304\316) |
| 6 | Seal | P.T.F.E. (Teflon) (BS.936) |
| 7 | Nut | M.S. (IS;226) |
| 8 | Lever | M.S. (IS;226) |
| 9 | Lever Support |
Suitability
| PRESSURE TESTING | |||
| MAX C.W.P | |||
| Body | Seat | Body | Seat |
| 300 PSI | 20 kg/cm² | 200 PSI | 14 kg/cm² |
| # Hydraulically | |||
| SUITABILITY : Air, Water, Gas, Oil | |||
| TEMPERATURE; Max to 90 degree | |||
