20 Piece (MOQ)
| Business Type | Manufacturer, Supplier |
| Country of Origin | India |
| Type | Ductile Iron Y Strainer |
| Shape | Y |
| Click to view more | |
Product Details
Application
Industrial
Color
Grey
Body
Cast Iron
Nut
Cast Iron
Screen
Stainless Steel
Product Code
H-35/YS
Features:
- Stainless steel strainer\mesh
- Screwed female threads as per BSPT
- 1mm perforated mesh
- Custom size Perforation on demand
- 15mm to 50mm
- Self operation
- Body : Cast Iron

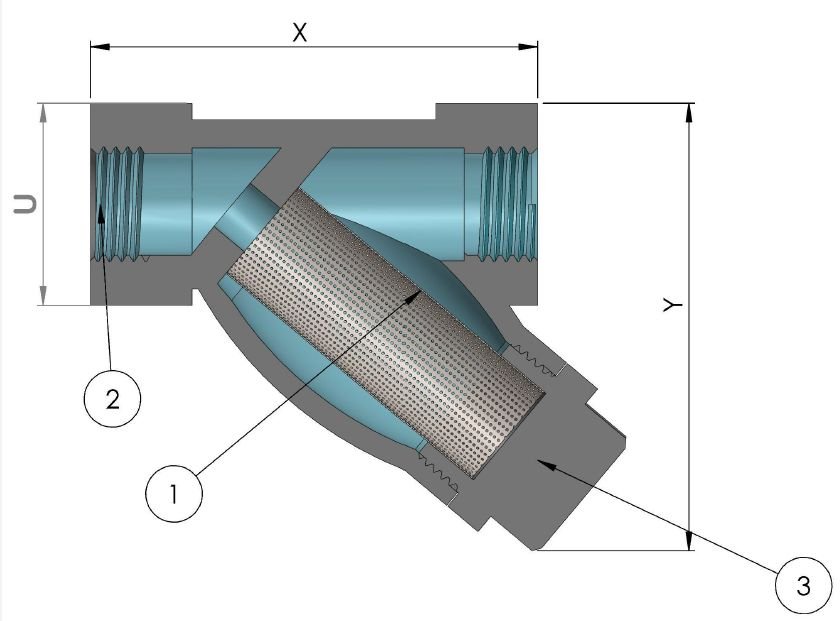

Bill of Material
| 1 | Body | Cast Iron (IS:210) |
| 2 | Bonnet | Cast Iron (IS:210) |
| 3 | Filter | Stainless Steel (AISI:304) |
| 4 | Gasket | Compressed Asbestos (IS: 2712) |
Suitability
| Test Pressure | Max CWP | ||
| Body | Seat | Body | Seat |
| 300 | 20 | 150 | 10 |
| PSI | kg/cm² | PSI | kg/cm² |
| #Hydrocally | |||
Chart
